Super DSP3+ SoftwareFirmware Update

Topic: update firmware of DSP3 Odometer Correction OBD Tool (china clone)

Super DSP3+ on www.cnautotool.com version:

Software version: 0305.0027

Firmware version: 1.0.0.0.4

Super DSP3+ update: CANNOT update DSP3+!

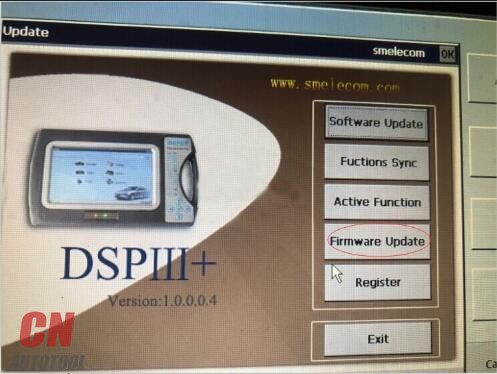

15-1 15-2

DO NOT CLICK ON “Update”,“Firmware Update”, “Software Update” if you are using China clone DSPIII+

Super DSP3+ Scan Tool For Mileage:

15-3

AUDI/VW/ SKODA/SEAT/BENTLE/MERCEDES/ LAND ROVER/ JAGUAR/ VOLVO/ PORSCHE

Manufacture   model          Version                       adapter        actvated
AUDI               (NEC+24C64)06.2014-up                       OBD adapter        yes
A3             2014 NEC35XX VDO            OBD adapter        yes
A4             13-up                       OBD adapter         yes
A5             13-up                        OBD adapte       yes
A6             12-up                        OBD adapter        yes
A6             12-UP(SMALL TFT) DIAG         OBD adapter        yes
A7             10-up diag                   OBD adapter       yes
A8             10-up diag                   OBD adapter       yes
Q3      2013(NEC+24C64) BIN MODE DIAG        OBD adapter       yes
2013(NEC+24C64) DIAG                OBD adapter       yes
Q5       13-up                              OBD adapter       yes
S5        13-up                            OBD adapter       yes

VW          (NEC+24C64)06.2014-up                       OBD adapter        yes
AMAROK        2013 DIAG                   OBD adapter        yes
BORA           2013 DIAG                   OBD adapter        yes
2014 NEC35XX V1              OBD adapter        yes
2014 NEC35XX V2             OBD adapter        yes

Cc             2013 VDO DIAG               OBD adapter        yes
2014 VDO DIAG               OBD adapter        yes
GOLF           GTI 2013 BIN MODE DIAG       OBD adapter        yes
GTI 2013 DIAG                 OBD adapter        yes
VARIANT 2013 VDO DIAG         OBD adapter        yes
CROSS 2013 VDO DIAG           OBD adapter        yes

GOLF 7         2014 NEC35XX (VDO)           OBD adapter        yes
GTI 2014 NEC35XX VDO 5TH      OBD adapter        yes

GRAN LAVIDA    2014 NEC35XX V1              OBD adapter        yes
2014 NEC35XX V2              OBD adapter        yes

JETTA          2013 USA VDO DIAG           OBD adapter        yes
2014 NEC35XX V1             OBD adapter        yes
2014 NEC35XX V2             OBD adapter        yes

LAVIDA          2014 NEC35XX V1             OBD adapter        yes
2014 NEC35XX V2             OBD adapter        yes

PASSAT          2013 BIN MODE DIAG          OBD adapter        yes
2013 DIAG                   OBD adapter        yes
2014 VDO DIAG               OBD adapter        yes

POLO            2014 NEC35XX V1             OBD adapter        yes
2014 NEC35XX V2             OBD adapter        yes
SANTANA         2014 NEC35XX V1             OBD adapter        yes
2014 NEC35XX V2             OBD adapter        yes
SAGITAR          2013-UP BIN MODE DIAG       OBD adapter        yes
2013-UP DIAG                OBD adapter        yes
2013-UP PRE-BIN MODE        OBD adapter        yes
SCIROCCO         2013 DIAG                   OBD adapter        yes

SHARAN          2013 BIN MODE DIAG          OBD adapter        yes
2013 DIAG                   OBD adapter        yes
T5               2013 BIN MODE DIAG          OBD adapter        yes
2013 DIAG                   OBD adapter        yes

TIGUAN           2013 VDO DIAG              OBD adapter        yes

TOUAREG          10-UP DIAG                OBD adapter        yes

TOURA            COLOR 2013 BIN MODE        OBD adapter        yes
COLOR 2013 DIAG            OBD adapter        yes

UP                2013 MM DIAG              OBD adapter        yes
2015 MM DIAG              OBD adapter        yes

VENTO   2014 NEC35XX (WHITE COLOR) V1 VDO    OBD adapter        yes
2014 NEC35XX (WHITE COLOR) V2 VDO    OBD adapter        yes
2015 VDO DIAG                       OBD adapter        yes

SKODA       (NEC+24C64)06.2014-up                         OBD adapter        yes
CITYGO           2013 MM DIAG               OBD adapter        yes
2015MM DIAG               OBD adapter        yes

FABIA            2014 NEC35XX VDO           OBD adapter        yes
2015 NEC35XX VDO           OBD adapter        yes

OCTAVIA          2013 VDO DIAG              OBD adapter        yes
2014 NEC35XX V1            OBD adapter        yes
2014 NEC35XX V2            OBD adapter        yes

RAPID            2013 VDO DIAG              OBD adapter        yes
2014 NEC35XX V1            OBD adapter        yes
2014 NEC35XX V2            OBD adapter        yes
2015 NEC35XX DIAG          OBD adapter        yes

SUPERB           2014 DIAG                 OBD adapter        yes

YET               2013 (NEC+24C64) DIAG      OBD adapter        yes

SEAT         (NEC+24C64)06.2014-up                         OBD adapter        yes

ALHAMBRA       2013 VDO DIAG               OBD adapter        yes

IBIZA           NEC+24C64 2014 VDO DIAG       OBD adapter        yes

LEON           2014 NEC3524 V1 VDO          OBD adapter        yes

MII              2013 DIAG                   OBD adapter        yes

TOLEDO          2014 BIN MODE DIAG           OBD adapter        yes
2014 DIAG                    OBD adapter        yes

BENTLE      CONTINENTAL    MULSANNE 12-UP DIAG          OBD adapter        yes

MERCEDES    A CLASS         W169 DIAG                    OBD adapter        yes
B CLASS          W245 DIAG                   OBD adapter        yes
C CLASS       W203 NEW DIAG                OBD adapter        yes
W204 DIAG                     OBD adapter        yes
W205 DIAG                     OBD adapter        yes

CITAN        W415 DIAG                     OBD adapter        yes

CLK CLASS    W209 DIAG                     OBD adapter        yes

CLS CLASS       W219 DIAG                   OBD adapter        yes

E CLASS       W211 DIAG                   OBD adapter        yes
W212  DIAG                   OBD adapter        yes

GL CLASS       X164(DIAG)                   OBD adapter        yes

GLK CLASS     X204 DIAG                    OBD adapter        yes

ML CLASS      W164 DIAG                   OBD adapter        yes

R CLASS        W251 DIAG                   OBD adapter        yes

S/CL CLASS     W221/C216 DIAG               OBD adapter        yes
W222 13-15(WITHOUT FILTER) DIAG    OBD adapter        yes
W222 DIAG                        OBD adapter        yes

SL CLASS      W129 DIAG                   OBD adapter        yes

SLS CLASS      R197 DIAG                    OBD adapter        yes

PORSCHE      918            2015 DIAG                   OBD adapter        yes

CAYENNE       2010 DIAG                   OBD adapter        yes

PANAMERA      2010 DIAG                  OBD adapter        yes
VOLVO        S60              2010-2013 DIAG              OBD adapter        yes

S80               2010-2013 DIAG             OBD adapter        yes

V40               2013 DIAG                  OBD adapter        yes
2013 V1 DIAG               OBD adapter        yes
2013 V2 DIAG               OBD adapter        yes

V60               2010-2013 DIAG         OBD adapter        yes
2013 DIAG              OBD adapter        yes
2013 V1 DIAG           OBD adapter        yes
2013 V2 DIAG           OBD adapter        yes

V70                 2010-2013 DIAG         OBD adapter        yes

VOLVO OBD2          2000-2007 V1          OBD adapter        yes
2000-2007 V2          OBD adapter        yes
2000-2007 V3          OBD adapter        yes

XC60                2010-2013 DIAG         OBD adapter        yes
2014-UP DIAG          OBD adapter        yes
2014-UP V1 DIAG      OBD adapter        yes
2014-UP V2 DIAG      OBD adapter        yes

XC90                2010-2013 V1          OBD adapter        yes
2010-2013 V2          OBD adapter        yes
2010-2013 V3          OBD adapter        yes

LAND ROVER     DISCOVERY4         2010 DIAG             OBD adapter        yes
2015 DIAG              OBD adapter        yes

EVOQUE          11-UP DIAG               OBD adapter        yes
15-UP DIAG               OBD adapter        yes
15-UP RECOVERY EEPROM   OBD adapter        yes

FREELANDER2      2013 DIAG               OBD adapter        yes

RANGE ROVER      ODOMETER-RANGE ROVER 2010 DIAG         OBD adapter        yes
RANGE ROVER                      2015 DIAG               OBD adapter        yes
RANGE ROVER  SPORT               2010 DIAG               OBD adapter        yes
RANGE ROVER  SPORT               2014 DIAG               OBD adapter        yes
RANGE ROVER  SPORT               2016 DIAG               OBD adapter        yes

JAGUAR          F-TYPE             2015 DIAG             OBD adapter        yes

XE TYPE             2015 DIAG             OBD adapter        yes
2016 DIAG             OBD adapter        yes

XF                 15-UP DIAG          OBD adapter        yes
24C64 DIAG       OBD adapter        yes

XJ                2010 DIAG     OBD adapter        yes
2016 DIAG     OBD adapter        yes

XK                24C64 DIAG      OBD adapter        yes

XKR               24C64 DIAG      OBD adapter        yes

How to solve Digimaster 3 Black Screen / White Screen?

First Way, to update EBOOT and kernel…
Update kernel of digimaster 3 was newly added(one key through updating kernel by SD card),we made some modification on EBBOOT program.

Update EBOOT
Press button number 8 and click button OK at the same time, then “Press OK to confirm, and if the button “continue update Firmware” appears, it means your device EBOOT program is old version, you need to firstly update EBOOT program and choose a convenient way to update Yanhua Digimaster 3 kernel.
Digimaster 3 update kernel
After update EBOOT, it is necessary to update kernel.

Tips: Before update EBOOT, please instal D3 TOOL first.

Step 1: Press button number 8 and button OK at the same time, and turn the power on. When you see “Press OK to confirm and continue update Firmware” press OK, then it enter the procedure of updating.

Step 2: Connect D3 with a computer through Mini USB (purple color), you can see a tip “Found New Hardware wizard”.As the image shown below.

Step 3: choose “install the software automatically”, click “click”

Step 4: If DIGIMASTER 3 have been installed already, choose the second “SEC SOC SMDK Board” in dialog box as shown below, and click “Next” to complete driver installation.

Step 5:Double-click Digimaster 3 PC Tools and choose “Kernel Update”.

Step 6: Make sure the purple Mini USB is connected, then you can see ” USB connect succeed”

Step 7: click “Kernel Update” and choose “EBOOT_20110427.bin” then click “OK” to start EBOOT program update.

Step 8: After 10sec. the DIGIMASTER 3 screen appears a twinkling red ‘YH’ logo which means EBOOT update is complete.

After update EBOOT successfully, please turn the power off and choose a appropriate way to update the kernel.

TIPS: Please uninstall the anti-virus software and firewall temporarily in order to run the software normally.

After Update EBOOT, still not work?

Second way, please operate by following the next tips:

1.Remove SD card from D3 to cardreader,and connect to PC at www.cnautotool.com. After successful connection, click “Removable Disk(E:)” as showed in the picture.

2. Delete the old file “YHTech” which is inSD card.

3. Copy the “YHTech” files from CD, and save it in SD card.

4. Please insert SDcard into D3 after successfully copy and paste. Then connect to network andturn on D3, click “OK” for downloading when appear remark of “Pleaseconnect network download hypervisors!” in the interface. It can befunctioned after successful download.”

Note:

1) When you use digimaster3 ck1200, if the following error appears, this is IP restriction,

please tell us, we will help you remove restriction according to IP.

2) The following digimaster3 BMW adapter has not been concluded:

Now it is replaced by this one:

3) Digimaster 3 English version doesn’t have TMS370 Programmer adpater, only Chinese version has.

FAQ about Digimaster 3 Odometer Correction Supported Vehicle Model

My customer always asked me questions about what the specific vehicle model Yanhua Digimaster 3 supported because of its powerful function on odometer correction. Now I gather some FAQ in this blog for sharing.

Original Digimaster 3 also is called Yanhua Digimaster3 Odometer correction tool or shortly D3 is new developed odometer correction master from Yanhua company. It works with various types of adapter you can easily achieve odometer correction, Audio decoding, airbag resetting, engine ECU resetting, IMMO, programming key for Benz & BMW etc

Q: Could you please recommend a device to change mileage for Honda Civic 2001-2005?
A: Digimaster 3 is the most reliable one.
Q: Could Digimaster III turn the unit meters to kilometers and turn kilometers to meters?
A: No.
Q: Can I use Digimaster 3 to do odometer correction for Peugeot Citroen.
A: yes.
Q: Recommend a device for 2012 Benz GL450 GL550 GL350 odometer correction.
A: Digimaster 3
Q: There is no vehicle model year of jetta in the list. Can Digimater 3 do the jetta until 2015?

A: Jetta has two kinds of systems. One is JCI which is supported, and the other is 35XXX which is not supported.
Q: When I used digimaster III to do 2004 Range rover vogue, the following error (IE58) Can bus correct timeout!? appears. What’s wrong?

Most of the vehicle model before 2008 cannot be program by CnAutotool.com.

What’s the Difference Between Digiprog3 and Digimaster3 ?

Cusotmers wanna do mileage function might have a problem : Which one to buy ? Digiprog 3 or Digimaster 3 ? Those two are both the good device, but which one should be the best choice ?
Please do not worry, let’s check the difference between those two divice

Version:
Digiprog3: V4.94

Digimaster 3: 1.8.1504.24

Screen size:
Digimaster 3 has much bigger touch screen than digiprog 3

Language:
Digiprog3 supported language: Deutsch, English, Espanol, French,Portuguese,Italiano, Turkish, Nederlands

Digimaster 3 supported language: English

Way to change mileage:
Both by OBD2 or dashboard

Update:
Digiprog3: Users are not allowed to update by themselves.
Our engineer program update files according to users’ machine serial number, then send to users to update.
Digimaster 3:
Original and update online by users anywhere anytime, and one year free update

Vehicle list:
Digiprog3: Odometer tool for universal car, but cover less vehicle models than digimaster 3, digiprog 3 cannot do well For Ford, For Benz, For BMW, For Opel that digimaster 3 can do.

Digimaster 3:
The Best odometer tool for universal car, such as it can change mileage For ford, For BMW, For Toyota, For Benz, For VW,For Audi,For Volvo,For Renault.

Vehicle year:
Digiprog3: Generally speaking, Digiprog3 cover vehicles from 1996 to 2013(some can do 2014 and 2015 year) the vehicle year it covers differs one from the other based on specific vehicle.

Digimaster 3: Generally speaking, digimaster3 cover vehicles from 1996-2014, some for 2015 year , the vehicle year it covers differs one from the other based on specific vehicle.

Tokens:
Digiprog3: No tokens limited
Digimaster 3: Item No.SP78 no token limitation, Item No.SP78-B with 980 Tokens

Function:
Digiprog3 : Mainly for setting and programming digital speedometer.
Digimaster 3: odometer correction, Audio decoding, airbag resetting, engine ECU resetting, IMMO, programming key for Benz &BMW etc

Conclusion:
If you want one mileage correction device to do most normal brand cars, you can choose Digiprog3 is enough.But for the new and high-end cars,
you need to use Digimaster 3.

At the same time, if you want to choose one multi-function mileage correction,
the Digimaster 3 is the best choice. Digimaster 3 contains the advanced technology
of programming new keys for BMW and Benz, CAS-BDM reading/writing and resetting;
35080V6 erasure etc.

Hope it would help you ??

Any questions, please contact us at : sale@cnautotool.com

Newly Update for Digimaster III

Original Yanhua Digimaster 3 Version 1.8.1607.25 Update Information
New Added car models for odometer adjustment and airbag resetting
Newest Version: 1.8.1607.25

New Added car model for odometer adjustment
1.Honda Elysion 93C76
2.Honda Odyssey 93C76

New Added car model for Airbag Resetting
1.Ford F1ET-14B321-CB
2.Ford DS7T-14B321-EA

Digimaster III  Version :1.8.1606.25   2016-7-11
New added car models for odometer adjustment:
1 Hyundai IX25  93C66

New added car models for and airbag resetting.
1 Ford DV4T-14B321-DH   95640
2 Ford 737T-14B056-BB 95160
3 Mazda8 L20657k30    95160
4 SSangyong   86251-31040   95080
Digimaster III  V1.8.1604.20 Update Information:
New added car models for odometer adjustment,airbag resetting,writing Benz BE(NEC) key and VW Immo function.
New added car models for airbag resetting:
1 Mazda SA10-57-K30M1
2 Mazda SA11-57-K30M1
3 KIA Sportage R 95910-4T000

New added car models for odometer adjustment:
1 SSangYong Korando 93C66
2 Ford Focus 2010
3 Opel Astra DIAG 2009-  (Only Available for Test user)
4 Benz(OBD) A Class W176
5 Benz(OBD) B Class W246
6 Benz(OBD) CLA Class W117
7 Benz(OBD) ML Class W166
8 Benz(OBD) SL Class R231
9 Benz(OBD) SLK Class R172
10 Volvo(OBD) XC60 2008-
11 Skoda(OBD) Superb 2008-
12 Ford(OBD) Mondeo 2008-
13 GM(OBD) Chevrolet Aveo (Only Available for Test user)
14 Audi(OBD) A1  -2013(Only Available for Test user)
15 Audi(OBD) Q3 -2013(Only Available for Test user)

New added Wiring diagram:
1 Meter system
-BMW 5 series F10/F11/F18(2010-) 5M48H/1N35H
-BMW 5 series GT F07 (2010-)  5M48H/1N35H
-BMW 6 series F12/F13(2011-)  5M48H/1N35H
-BMW 7 series F01/F02(2009-)  5M48H/1N35H
-BMW X3 F25(2011-) 5M48H/1N35H

2 Immo system (Super BDM adapter under Automatic Mode need to read EEPROM / Dflash data)
-BMW 1 series F20(2011-)  5M48H/1N35H
-BMW 5 series F10/F11/F18(2010-) 5M48H/1N35H
-BMW 5 series GT F07 (2010-)  5M48H/1N35H
-BMW 6 series F12/F13 (2011-) 5M48H/1N35H
-BMW 7 series F0X (2008-)   5M48H/1N35H
-BMW X1 (2010-) 5M48H/1N35H
-BMW X3 F25 (2011-) 5M48H/1N35H

New added function for VW immo:
1 Jetta 2010-                  Key learning
2 3th-generation Immo Key matching (CAN)
3 3th-generation Immo Romete Matching (CAN)
4 3th-generation Immo Read security code(KWP1281) System Type 1
5 3th-generation Immo Read security code(KWP1281) System Type 2
6 3th-generation Immo Keys matching(KWP1281)
7 3th-generation Immo Romete Matching(KWP1281)
8 3th-generation Immo Read security code(KWP2000)
9 3th-generation Immo Keys matching(KWP2000)

New added models for writing BEN BE(NEC) key:
1 S  Class
2 CL Class
3 SL Class
4 E Class
5 CLK Class
6 CLS Class
7 C Class
8 V Class

Digimaster III added models for mileage correction and airbag resetting Version:1.8.1504.24  (2015-04-30)
Updating models for mileage correction:
1 Peugeot 408 2015 BSI 95256  95256
2 Peugeot 408 2015 Instrument 95160  95160
3 Roewe 350 2014 Instrument 95080 95080
4 Roewe 350 2014 Body ECU 24C16  24C16
5 Faw Elysee Instrument 93C86  93C86
6 Faw Elysee BSI 95256  95256
7 JMC Shunda 24C08  24C08
8 Howo 24C04  24C04
Updating models for airbag resetting:
1 Ford Mondeo DS7T-14B321-EB  95640
2 Ford Mondeo BS7T-14B321-AC 95320
3 Mitsubishi Jin Hyun 8635A321-0285011550  95640
4 Cadillac Seville 5WY87270  95160

Digimaster III Newly Updated car models for mileage adjust Ford and Grand Cherokee on 16th March
Newly updated car models for mileage adjust
1.Ford F150(Raptor)24C16
2.Ford Falcon 24C02
3.Grand Cherokee 93C86 V1 93C86
4.Grand Cherokee 93C86 V2 93C86

Digimaster III Newest Version: 1.8.1407.14 Newly Added Some Mileage Adjustment:
1.Chrysler Grand Cherokee 2007-2011
2.Citroen C4L 2014

Newly Update for Digimaster III
1.Digimaster-III Newly added key programming function
Digimaster III is applicable for high-class cars such as Mercedes Benz and BMW. Innovative automatic mode for key programming technology, the key programming complete in one go, effectively ensure the security of reading and writing data.
2.DigiMaster-III New Generation Core Framework
Applying the new G3 platform of Yanhua Tech and the innovative consumption mode of “Pay as you go”support the latest car, global synchronic upgrade, extend and integrate functions freely.
3.Digimaster-III Intelligent Operation Platform
4.Upgrade the single-task system into intelligent multi-task and multi-thread operation system, extend functions freely and unlimitedly.
5.DigiMaster-III Comprehensive Upgraded Operation Interface
It breaks away from the original monotonous static interface, based on IE core technology to support rich and dynamic effects as well as advanced skin interface. And it is more beautiful and friendly, supports for many language around the world.
6.DigiMaster-III High Definition Digital Screen
Upgrade the low definition LCD color screen (320X240) to the imported HD digital TFT color screen (800X480) which applying the precision touch technology
