Launch X431 Pro Mini Bluetooth VS X431 Diagun, X431 Pro Mini Wins

Launch X431 Pro Mini Bluetooth VS X431 Diagun, X431 Pro Mini Wins in features, function, vehicle coverage, parameters, etc.

X431 Pro Mini Wins X431 Diagun in highlights:

1.Android-based vehicle trouble diagnostic tool
2.Full car model covering prevailing vehicle models of Asian, European, American and Chinese
3.Full system vehicle trouble diagnosis
4.Wi-Fi connection
5.Bluetooth communication between the VCI module and X-431 PRO MINI
6.Perform remote diagnosis: configures X-431 PRO MINI as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.
7.One-click update online for 2 years free: Lets you update your diagnostic software more efficiently. To obtain better function and update service, advise you update the software regularly.
8.OBD diagnose function: Reading DTCs, Clearing DTCs, Reading Data Stream and Actuation Test
9.Special Functions: Oil Reset Service, Steering Angle Calibration, Electronic Parking Brake Reset, Battery Register / Battery Maintenance, ABS Bleeding, Electronic Throttle Position Reset / Learn, Diesel Particulate Filter (DPF) Regeneration, Tire Pressure Monitor System Reset, Gear Learning, Immobilizer Matching and Fuel Injector Coding

X431 Pro Mini Wins X431 Diagun in vehicle coverage:

X-431 PRO MINI from CnAutotool supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi.Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis.

X431 Pro Mini Wins X431 Diagun in features:

1.Accurate: X-431 PRO MINI performs diagnosis (fault code, data stream, action test and other functions) as the dealership.
2.Quick: can perform full system diagnosis and one button to clear codes at a high speed
3.Record and playback Data Stream: Record and playback the data stream help you analyze the trouble when driving and solve it.
4.VINSCAN: Automatic scan (OBD VIN) and manual input (INPUT VIN) are available.
5.View History: The History function provides a quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch.
6.Maintenance Help: Including: How-to Videos, operation skills and user manual, Q&A, Quick start guide etc.

X431 Pro Mini Wins X431 Diagun in parameters compared:

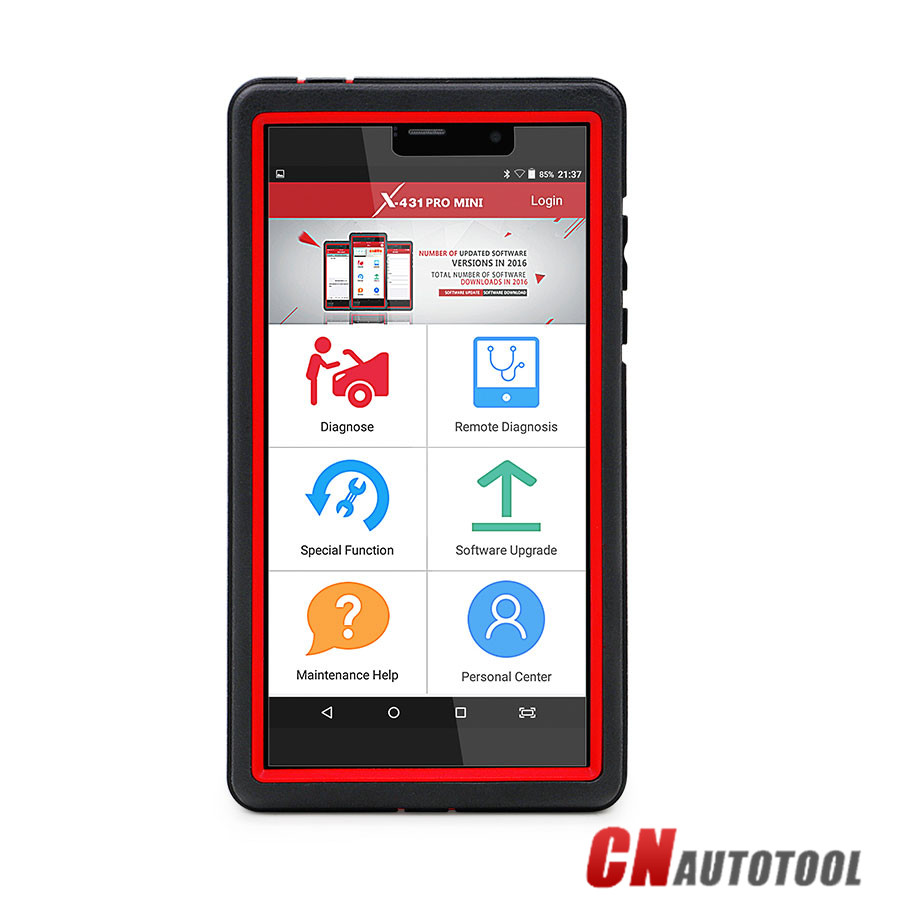

Launch X431 Pro Mini Technical Parameters:
Operating system: Android 5.1
Processor :Quad core 1.3 GHz
Memory: 2GB
Storage:16GB
LCD screen: 6.9 inch with a resolution of 1280 x 720 pixels
Camera :Front-facing 2MP camera + rear-facing 5MP camera
Battery :3.7V/3000mh rechargeable polymer lithium battery
Connectivity : Wi-Fi: WLAN 802.11b/g/n ，Bluetooth: Bluetooth 4.1
Working temperature: 0℃ ~ 45℃
Storage temperature: -10℃ ~ 50℃

VCI module Parameters:
Working voltage 9 ~18V
Average working current About 85mA
Standby current About 55mA
Working temperature -10℃ ~ 55℃
Storage temperature -20℃ ~ 70℃
Relative humidity 20% ~ 90%

DBScarⅢ adapter parameters:
The brand-new DBScarⅢ adapter is small size and can be easily plugged into the handset to diagnose and matching, it tests car models stably, it supports
CAN diagnosis also USB data transfer.
Size: 69 × 40 × 18 mm
Operating voltage: 9V DC – 18V DC
Test voltage: DC12V
Typical power consumption: ≤2W
Bluetooth distance: 100 m
Connectivity: Bluetooth + wired
Operating temperature: -10℃to 50℃
Red Indicator: Turns red when connected to power supply;
blue Indicator: Turns blue then wireless Bluetooth work;
USB work: Turns green when the connector is connected to the USB cable

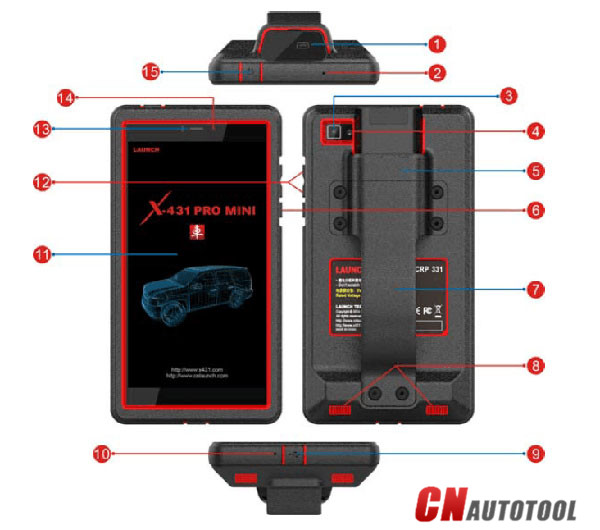

X431 Pro Mini Wins X431 Diagun in handset

1 VCI module
2 Reset hole
3 Rear camera
4 Camera flash
5 Slot for VCI module for housing the VCI module.
6 POWER/Screen lock key In Off mode, press it to turn X-431 PRO MINI on; In On mode, turn X-431 PRO MINI off with long press or lock screen with short press.
7 Carry strap
8 Air intake vent
9 USB/Charging port To connect to the power adaptor for charging.
10 Microphone
11 LCD screen
12 VOLUME +/- Key To adjust the volume. To print the screen, hold and press the POWER and VOLUME – key until a snapshot pops up on the screen.
The captured snapshot is saved in the “Screenshots” folder.
13 Speaker
14 Front cameras
15 Earphone Jack

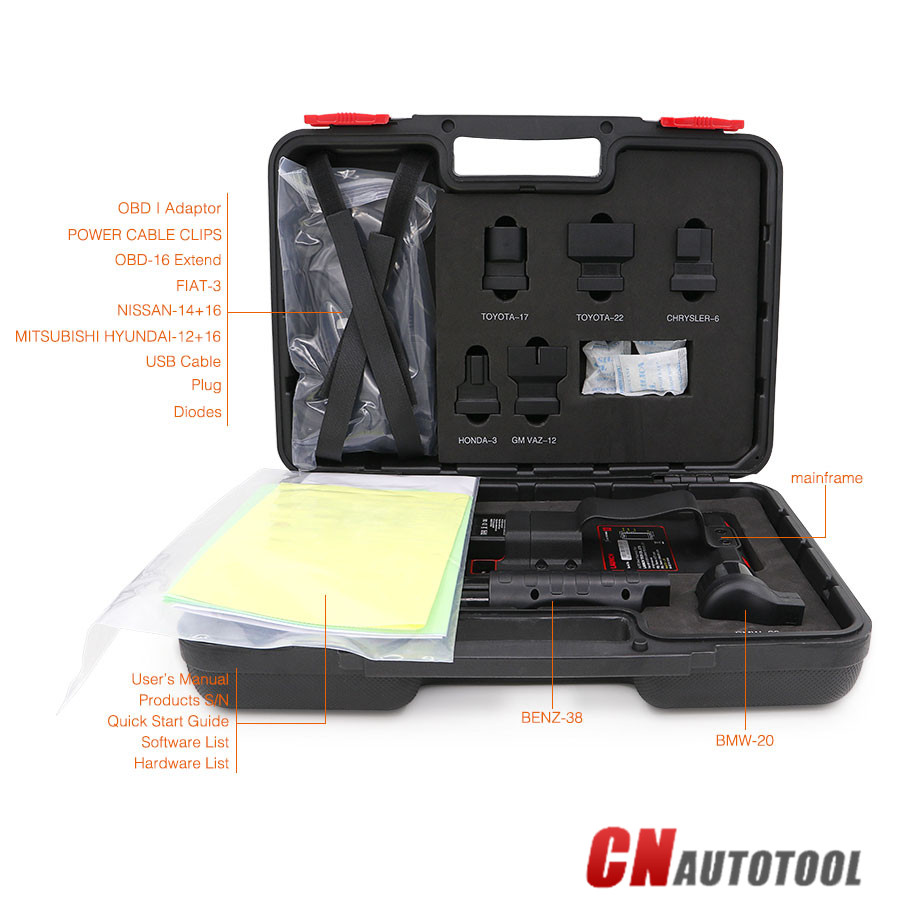

Launch X431 Pro Mini package:
