2019 New XTool X100 PAD X-100 PAD Pro Tablet Key Programmer with EEPROM Adapter More Stable Work Well on Nissan and Dodge Key Programming

Good News 2019 New XTool X100 PAD  Tablet Key Programmer with EEPROM Adapter More Stable Work Well on Nissan and Dodge Key Programming released.

It is with new appearance and the VCI BOX is now inside the Tablet. The communication will be more stable than before.

Here is the new appearance Xtool X100 PAD Pro

Dodge - Key - Programming - 1

Here is the Function List
Dodge - Key - Programming - 2 Dodge - Key - Programming - 3 Dodge - Key - Programming - 4
Dodge - Key - Programming - 5 Dodge - Key - Programming - 6
And it is the Main Features

Dodge - Key - Programming - 7 Dodge - Key - Programming - 8 Dodge - Key - Programming - 9
Vehicle Coverage List

Dodge - Key - Programming - 10 Dodge - Key - Programming - 11
For more information ,please visit the following link

Xtool X100 Pad2 Diagnosis, IMMO, Odometer Adjustment Vehicles List

I have checked X-100 PAD 2 full package machine on in our warehouse and recorded a video to show its immobilization, odometer adjustment, diagnosis and other service supported vehicles list.

Immobilization

Cars Coverage List for Immobilization:

America:
Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford

Asia:
Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi,
Nissan, Ssangyong, Subaru, Suzuki, Toyota

China:
BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery

Europe:
Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot,
Porsche, Renault, Romeo, Seat, Skoda, Smart, VW

Odometer- -adjustment- - 1 Odometer- -adjustment- - 2 Odometer- -adjustment- - 3

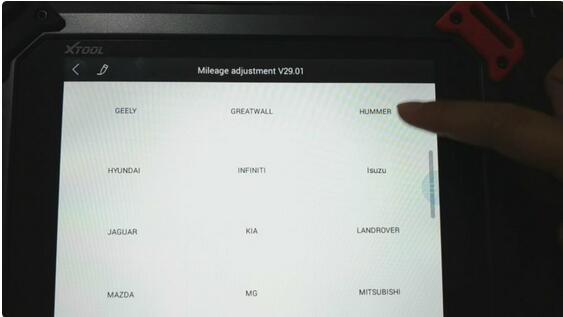

Odometer adjustment

Odometer adjustment detail supported car list:



Odometer- -adjustment- - 4

Odometer- -adjustment- - 5

Odometer- -adjustment- - 6 Odometer- -adjustment- - 7

Common diagnosis

America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford
Asia: Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota
China: BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery
Europe: Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW

Odometer- -adjustment- - 8

Other services

finally, share the Video and you could check the functions you want;

Odometer- -adjustment- - 9 Odometer- -adjustment- - 10

How XTOOL X100 Pad2 Read Peugeot 206 BSI Pin Code

This post will share you with the process on how Xtool X100 Pad2 read Peugeot 206 BSI pin code.

Use Tools:

Xtool X100 Pad2

Xtool EEPROM adapter

Connect X100 Pad2, eeprom adapter and bsi 95160 CPU chip

Xtool-x100-pad2-read-peugeot-bsi-pin-code-1

Xtool-x100-pad2-read-peugeot-bsi-pin-code-2

Select Read Pin Code

Xtool-x100-pad2-read-peugeot-bsi-pin-code-3

Select EEPROM adapter

Xtool-x100-pad2-read-peugeot-bsi-pin-code-4

Make sure the eeprom adapter is connected and powered on, the status indicator turns on

Xtool-x100-pad2-read-peugeot-bsi-pin-code-5

select car brand: Peugeot->206->BSI 95160
Xtool-x100-pad2-read-peugeot-bsi-pin-code-6 Xtool-x100-pad2-read-peugeot-bsi-pin-code-7 Xtool-x100-pad2-read-peugeot-bsi-pin-code-8

select V1 or V2

If have communication failed error, select another option or try again

Xtool-x100-pad2-read-peugeot-bsi-pin-code-9

Save data

Xtool-x100-pad2-read-peugeot-bsi-pin-code-10

Successfully read Peugeot 206 BSI pin code by XTOOL X100 Pad2!

Xtool-x100-pad2-read-peugeot-bsi-pin-code-11

How to Solve XTOOL Active Fail with “Input is Invalid”

One Xtool X100 Pad2 user turned to us for help that his new X100 Pad2 failed to activate. When he filled in the info, the tablet screen shows “input is invalid: invalid Email, please input the right address” and then “This device still not be activated, please active it so that you could update the APP and the diagnostic software” with a black screen.

The customer has been trying over 2 weeks to solve this problem but nothing happened.

He tried to change another email but fail too.

Attached two photos to show this situation:
xtool-100-1

xtool-100-2
Customer:

Hello my X100 Pad2 is not right .The screen upside down. Win I try to activate it says INPUT IS INVALIB s/nx100pad2-12727.

After engineer checked the serial number of customer’ pad, they find that customer fill with the wrong activation code and it was stored in the machine so that he could not active successfully.

Tips for active XTOOL:

Please make sure your information when filling in the brand.
Once you have registered with the wrong information, please reset the xtool product and then register again using the right information.

XTOOL Tablet Record Data Guide

Here is the guide about how to record data of XTOOL when something is wrong during diagnosis. This could help the engineer to check what the problem is and help you to solve the problem more efficiently.

Record data guide:

1.Insert the key and turn on the ignition switch, connect the device to vehicles, then choose the vehicle you want to diagnose.

2.To make sure the software is the latest version, click the small pen “1“on Upper left corner to Turn on data logging, you will see the icon flashes to indicate recording, and click Manually select models to choose your car model

xtool-x100-pad-data-record-1

3.On the “control unit” menu, and select the part that needs to be tested and enter into the diagnostic abnormal interface.

4.Once you finish all the test, click that small pen “1“ on XTOOL X-100 PAD2 again, Then the pop-up feedback form, and fill in the user information column of contact telephone and mailbox, point “Send” to send. The email address in this part is XTOOL tech. and your data will be sent to XTOOL engineer.

xtool-x100-pad-data-record-2

after the record data, please send the nameplate of the car model you used which will help us to match the data.

A nameplate is like this:
xtool-x100-pad-data-record-3

Note: this guide could be used on XTOOL tablet such as XTool X100 PAD, X100 Pad2, XTOOL EZ500

What is good,xtool x100 pad2 or obdstar tool

What is good, XTOOL X-100 PAD 2 or obdstar tool (X300 PRO3 and key master dp), Which one has better coverage and support. This is an old topic asked by many users, so I consider to quote here the explanation from ray-ray (Veteran at digital-kaos.co.uk forum).
ray-ray (DK Veteran) reply: Story is obdstar and xtool was a joint company for many years. They play a game chicken or the egg who came first? Obdstar start the company in 2007 and xtool in 2010. Once again who came first chicken or the egg? I’ve been working for free for 6 month now for Xtooltech.
Question: how come obdstar products are more popular and has frequent updates but xtool products are slow in updates and least popular?
ray-ray Answer:  If you look at old post Xtooltech had no sale in china or on eBay. I ask member here on the forum if anyone used ps80 or ps90 little to no feedback. I ask my Chinese broker to look and buy a unit for me to test. They refuse to sell to any Chinese broker. That was perfect solution I want to come out with something new with a company that was will to bring in engineers to the USA. The company was part of Obdstar that did most of there sales in commodities. After the break up they focus on heavy duty diagnostics. I went to sema last year in Las Vegas, next to sema there was diagnostics show call apex. There I meet the company and there engineers, I made a deal that day. Xtooltech learn that day that there was too much competition in diagnostics, and very little in immobilizer. I have work on making the tool better, I have not stop.
My goal is to keep developing and improving there tool (there is no money Xtooltech is paying me). Ken the owner has tried to pay me for my work and I have refuse. My mission is to make it a great tool.. what is my reward to be remember.
PS: to have original Xtooltech products, recommend www.cnautotool.com who are authorized dealer with nice price and customer service.

How to read GM Chevrolet Onix pin code by XTOOL X100 Pad 2?

This blog will show you steps: Xtool X100 Pad2 calculate Chevy Onix pin code easily!

tablet-key-progtammer-1

Tips: XTOOL X100 Pad 2 not only can read pin code and program key for many cars, but also has SPECIAL functions!

Here you go for checking:

How XTOOL X100 Pad 2 read GM Chevrolet Onix pin code?

Connect XTOOL X100 Pad 2 Pro tablet with Chevy Onix OBD2 port.

Power on the device.

Go to “Immobilization” and select “GM” firstly.

tablet-key-progtammer-2

It will automatically open XTOOL GM V27.03 software.

Choose “Immobilizer” and “Chevrolet”.

tablet-key-progtammer-3

tablet-key-progtammer-4

Choose the Chevrolet car region/market. (In this case, it’s South America)

Then select the car model: Onix.

tablet-key-progtammer-5

Choose “Get security code” function.

tablet-key-progtammer-6

Click car year “2013-2015”, turn ignition on and click “OK”.

tablet-key-progtammer-7

Wait a second, XTOOL X100 Pad 2 Pro read out Chevrolet Onix 4-digit pin code as “1788”!

tablet-key-progtammer-8

Xtool Pad2 VS EZ500: Add VAG 4th 5th immo key

I was referring to how many more Volkswagen cars are able to see XTOOL X-100 PAD 2? Unlike the EZ500

Answer to their difference:

VAG VW 4th 5th IMMO key programming (+& -)

XTOOL X100 PAD2 FULL Set can program VAG VW 4th 5th IMMO key, here a post on how to do:

If your XTOOL X100 PAD2 without VAG 4th 5th IMMO key programming function, order a KC100 adapter, this is a little bit expensive, maybe you contact the seller they would give you discount especially when they promote.

4 system diagnosis VS full system diagnosis

You can see XTOOL X100 PAD2 have four systems diagnosis (Engine, Brakes, Central Electrics, Airbag), no full-system diagnosis. And XTOOL EZ500 have full-system diagnosis option. EZ500 is powerful with many functions and vehicle coverage, I already prepare a post on all EZ500 functions and testable car models & year:

Price is difference

Xtool x100 Pad2 plus VAG 4th 5th immo key: $879 incl. shipping cost + one year free update online (One key update) + after-sale support

xtool-ez500-1
Xtool x100 Pad2 with no VAG 4th 5th immo key: $689 incl. shipping cost + one year free update online (One key update) + after-sale support

xtool-ez500-2

XTOOL KC100 VW 4th & 5th IMMO Adapter for X-100 PAD2: $309 incl. shipping cost

xtool-ez500-3

EZ500 (same as ps80): $769 ncl. shipping cost + one year free update online (One key update) + after-sale support

xtool-ez500-4

How XTOOL X100 PAD program SUZUKI Alivio key no need pin code?

Do you know how to program SUZUKI Alivio key without pin code by XTOOL X100 PAD? This blog will show you step by step as below!

Success Case: SUZUKI Alivio key programming without pin code

Tool used: XTool X100 PAD

First connect XTOOL X100 PAD with car via the Bluetooth VCI Box.

Next click “Immobilization” on main menu.

without-pin-code-1

Choose the second “SUZUKI”.

without-pin-code-2

Next, you will open newest SUZUKI V26.25 software, go to “Immobilizer” then select “Alivio” car model.

without-pin-code-3

Then just choose “Program keys (free pin code)” function.

without-pin-code-4

And it will remind you after key programming all keys will be erased. Click “Yes”.

without-pin-code-5

Follow the tips to turn car ignition on then insert a new key to continue.

Wait key programming complete 100%. Exit the program and turn off ignition.

In this way, XTOOL X100 PAD successfully make a new key for SUZUKI Alivio no need any pin code!

without-pin-code-6

Tested new key working!

without-pin-code-7
