USA 2018 Jeep Compass Program a Smart Key with Obdstar X300DP PLUS

This is a test report from CnAutotool.com.

You will get the solution of: What for 2018 Jeep Compass USA key programming? How to?

Two keys to Compass:

obdstar-2018-jeep-compass-proximity-1

Jeep USA-CANADA in OBDSTAR X300 DP PLUS:

obdstar-2018-jeep-compass-proximity-2 obdstar-2018-jeep-compass-proximity-3

It’s 2018 Jeep Compass USA

Immobilizer -Compass (2017-2018)- proximity

obdstar-2018-jeep-compass-proximity-4 obdstar-2018-jeep-compass-proximity-5

VERY IMPORTANT: pls confirm your internet connection is good, coz server connection is required for the functions below

obdstar-2018-jeep-compass-proximity-6

Test 1: Read pin code

Test 2: Read key quantity

Test 3: Erase a key

Test 4: Program a new key

in detail…

Test 1: Read pin code

X300DP PLUS is gonna to read Pin codes

obdstar-2018-jeep-compass-proximity-7

Confirmed that your network connection is good

Switch ignition off and press the emergency flasher switch

obdstar-2018-jeep-compass-proximity-8

Read Pin code success
obdstar-2018-jeep-compass-proximity-9

Test 2: Read key number

Obdstar key master dp will read keys

obdstar-2018-jeep-compass-proximity-10
obdstar-2018-jeep-compass-proximity-11

2 keys available

Test 3: Erase a key

Obdstar key master dp will erase a key

obdstar-2018-jeep-compass-proximity-12

Make sure that your network connection is good

Switch ignition off and press the emergency flasher switch

Make sure there are no wireless devices close to the prox key

Make sure all doors are closed

obdstar-2018-jeep-compass-proximity-13

The procedure will disable all prox and then program one prox

obdstar-2018-jeep-compass-proximity-14

Obdstar fill in pin automatically

Just press enter to continue

obdstar-2018-jeep-compass-proximity-15 obdstar-2018-jeep-compass-proximity-16

Put the smart key to be added in the central control position

press and release the unlock key once within 30 seconds (3 times)
obdstar-2018-jeep-compass-proximity-17

Now, only 1 key available

obdstar-2018-jeep-compass-proximity-18

Finish

Test 4: Program a new key

Obdstar X300 DP PLUS will program a smart key

obdstar-2018-jeep-compass-proximity-19

Make sure:

– your network connection is good

– Switch ignition off and press the emergency flasher switch

– Make sure there are no wireless devices close to the prox key

– Make sure all doors are closed

obdstar-2018-jeep-compass-proximity-20

The procedure will add a new key without erasing the ones previously programmed

Auto fill in pin

obdstar-2018-jeep-compass-proximity-21

Pls add to the smart key in the central position

30 seconds

press the unlock button repeatedly until the door lock moves

obdstar-2018-jeep-compass-proximity-22

2 keys now!

Finished!

obdstar-2018-jeep-compass-proximity-23

Test the new key

Worked!

BMW CAS3++ Add Smart Keys: Lonsdor K518 DONE

Tested successfully! Lonsdor K518ISE Key Programmer is able to add a smart key to BMW CAS3++.

Here’s the programming instruction in detail (with images)…

Lonsdor K518ise: Immobilizer – BMW

3+-obd-1

Select from type: CAS2/CAS3 series

3+-obd-3

Program key

3+-obd-4

Will start to make a dealer key

this can add one key (select blank position)
this can replace the original key (choose non-blank position)
this can generate a key via OBD or K518 slot
3+-obd-5

Pls press the Start button once
3+-obd-6

CAS part number: *******

CAS type: CAS++

For encrypted CAS. pls use an original key to switch ignition on

Pls back up eeprom data before any operation

Pls contact the dealer when key generation failed
3+-obd-7
Lonsdor read out frame number, cas part number, diagnostic code, key tooth code and remote key frequency and ignition

3+-obd-9

Reading ram, for about 1 min…

3+-obd-10

Remove the key from the ignition switch

For a smart key, take it outside the car

Ok to continue
3+-obd-11

Safety checking…

3+-obd-12

Reading key information…

3+-obd-13

Current CAS key position info: Key 3

3+-obd-14

Note: If the key is an original key, pls pre-pro-process it first.

If the key has been programmed but failed, pls do key unlocking and CAS key data restoring first

3+-obd-15

It’s a remote key

3+-obd-16

Pull K518 key slot to the right and insert the key to program (to identify id the key is legal and to pre-process

3+-obd-17

Current key is legal

Generating can be continued

3+-obd-18

Pls insert the key for programming into the car slot

3+-obd-19

Writing key data…

3+-obd-20

If for a remote of smart key, pls complete following steps:

take away the key from theition switch
re-insert the key into the ignition switch
press the start button

3+-obd-21

If the vehicle cannot be started, or the direction lock shows on the dashboard, pls synch ELV and DME accordingly

3+-obd-22

Writing key data – completed!

3+-obd-23

Job’s done!

Program Honda Vezel 2015 All Keys Lost by OBDSTAR X300 DP PLUS

Vehicle model: Honda Vezel year 2015

Purpose: program key when lost all keys

Device: OBDSTAR X300 DP PLUS/ Key Master DP PLUS

Method: via OBD

obdstar-2015-1

obdstar-2015-2

Procedure:

(Note: FOLLOW EACH IGNITION ON/OFF OPERATION!!!)

Connect X300 DP PLUS with vehicle via OBD socket

Select Immobilizer->Honda->Honda/Acura V31.25->Select from type-> Immobilizer-Auto->16-PIN

obdstar-2015-3
obdstar-2015-4 obdstar-2015-5

obdstar-2015-6 obdstar-2015-7

Turn on ignition switch

Makes communication

obdstar-2015-8

Identify the type of the immobilizer system: 4th Generation Immo

Select Key function->Rewrite key

obdstar-2015-9 obdstar-2015-10

When the key is registered or detected, this function is used for making necessary backup
obdstar-2015-11

Require at least one original key to reset all the key steps

obdstar-2015-12

Enter number of keys you want to register
obdstar-2015-13

Switch ignition off

Then turn on the ignition

Turn off ignition within 20s
obdstar-2015-14

Turn on ignition with next key within 20s

Turn off ignition within 20s

obdstar-2015-15

Turn on ignition without changing the key within 20s

Switch ignition off

Turn on ignition

Check if the immobilizer indicator goes off.  If yes, press Enter to continue

Turn off ignition

obdstar-2015-16

Turn on ignition with original key

obdstar-2015-17

Key registration completed. Turn off ignition

Test all keys and start engine.

obdstar-2015-18

Done.

How to Update CGDI Prog MB Key Programmer Software and Firmware?

Both CGDI Prog MB software and firmware can be updated online for free.  The newest version is always available to download free on official website。

How to Update CGDI MB software & firmware?

When a new version software is released, the software will prompt “discover update available” and update feature.

Current version 2.8.4.0 (2019/05/10)

cgdi-mb-update-to-1

Press Update Now and wait till the process completed.

cgdi-mb-update-to-2

If the device firmware is too old, CGDI software will require to run firmware update

cgdi-mb-update-to-3

Click setting icon->Firmware Upgrade

cgdi-mb-update-to-4

Update firmware in process

cgdi-mb-update-to-5

Firmware update completed.
cgdi-mb-update-to-6

Disconnect the USB and reconnect again.

Done.

How to collect data for “old version” Benz W164 with CGDI MB via OBD

CnAutotool shares how to use CGDI Prog MB with AC Adapter to collect data for “old version” Benz W164 by OBD. Here is the detail for CGDI programmer users.

Step 1: Connect CGDI prog MB to computer

Step 2: Collect Data

Step 3: Save EIS Data

Step 4: Calculate Key Password

Step 1: Connect CGDI prog MB to computer

According to the Wiring diagram display to connect all the devices

How to collect data for old version Benz W164-1

How to collect data for old version Benz W164-2 How to collect data for old version Benz W164-3

How to collect data for old version Benz W164-4 How to collect data for old version Benz W164-5

Step 2: Collect Data

Open CGMB software

Go to EIS> Read EIS Data to current key status

How to collect data for old version Benz W164-6

Click on Computer Password> Copy key without key > Collect Data

Select Platform mode (Quick collect) and press OK

How to collect data for old version Benz W164-7

Collecting data…

Follow the prompts: Please insert the simulation key within 1 minute, if you have inserted, please pull out and try again.

(Please turn the quick collect adapter switch to the Platform position. Turn the key to the ignition switch ON position.)

How to collect data for old version Benz W164-8

Collecting, please wait…

(It needs about 5 minutes)

Saving the data…

How to collect data for old version Benz W164-9

Save the file successfully

Step 3: Save EIS Data

Select Computer Password> Copy key without key> Upload data

Select the file just saved

Upload data successfully

How to collect data for old version Benz W164-10

Step 4: Calculate Key Password

Click on Query result

Calculating the key password…

Computing success!

How to collect data for old version Benz W164-11

Win 7 Install Toyota Techstream 14.10.028: No need activation

TOYOTA Techstream V14.10.028 is already tested working ok no bug, in this article, CnAutotool engineer shares the procedure of installing Toyota Techstream 14.10.028 on win7 without activation.

Language:
Chinese, English (United States), French (Canadian), German, Italian, Japanese, Spanish

1. Copy and paste “Techstream_SetupNA_V14.10.028” to the desktop.
Win-7-Install-Toyota-Techstream-1 Win-7-Install-Toyota-Techstream-2

2. Open “Techstream_SetupNA_V14.10.028” to install until complete.

Win-7-Install-Toyota-Techstream-2 Win-7-Install-Toyota-Techstream-3

Win-7-Install-Toyota-Techstream-4

3. Click on “MVCI Driver for Toyota_Cable 2.0.1” to install Mini VCI driver for Toyota TIS.

Win-7-Install-Toyota-Techstream-5

4. Open “Techstream” on the desktop.
Click “Yes”.

Win-7-Install-Toyota-Techstream-6

5. Toyota Techstream 14.10.028 requires to register.
Click on “Cancel” (Later you will know how to do…)

Win-7-Install-Toyota-Techstream-7

6. Click on “Setup” and click on “VIM select”, then choose “Xhorse MVCI”.
Win-7-Install-Toyota-Techstream-8

7. Exit Techstream to crack the software.

8. Techstream 14.10.028 crack method:
On the desktop, right click on “Techstream”, choose “Shortcut”. Meanwhile open “Read me” to copy

“Techstream.exe”/395070/VM:1 ” and to replace “MainMenu.exe”
Click on “Apply” then “Continue”.

Win-7-Install-Toyota-Techstream-9

Win-7-Install-Toyota-Techstream-10



9. Driver installing successfully.
Plug Mini VCI cable to the computer.

10. Open “MVCI Firmware”, click on “Device Info”
Firmware: 1.4.1

Win-7-Install-Toyota-Techstream-11

11. Open “Techstream” on the desktop.

Win-7-Install-Toyota-Techstream-12

12. Connecting to the vehicle and then automatically read out the Toyota information (Toyota Yaris 2007).

Win-7-Install-Toyota-Techstream-13

Win-7-Install-Toyota-Techstream-14

13. Choose “Engine and ECT” to go on.

Win-7-Install-Toyota-Techstream-16

14. Trouble codes list

Win-7-Install-Toyota-Techstream-17

15. Continue to enjoy Toyota Techstream 14.10.028.

Thanks.

Program BMW FEM/BDC Key by VVDI2, Lonsdor K518, CGDI or Yanhua FEM

Lonsdor K518ISE, CGDI Prog BMW, Xhorse VVDI2, Yanhua BMW FEM/BDC Key Programmer all are verified to program FEM/BDC key and all keys lost without issues. But which tool is best for BMW FEM BDC key programming?

Look here and you’ll know all:

bmw-fem-bdc-key-programmer-01

Lonsdor K518ISE program BMW FEM BDC key

CGDI Prog BMW OBD program FEM key

Xhorse VVDI2 BMW do coding/programming to FEM BDC

Yanhua BMW FEM key programmer add a new key

1 How to use Lonsdor K518ISE to program BMW FEM BDC key?

bmw-fem-bdc-key-programmer-02

Three steps: read key info–>pre-process FEM/BDC system–>make a dealer key

In details…

Step 1: read key info

MUST read key information first

Step 2: pre-process FEM/BDC system

MUST DISCONNECT THE BATTERY

1: OBD back up original coding data:

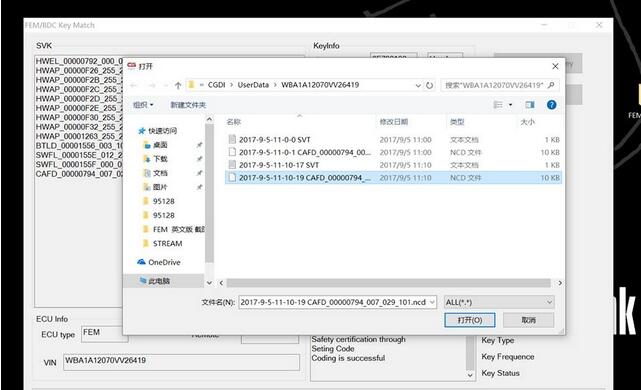

On the car or test platform, connect to FEM/BDC system, then back up original back up coding files via OBD

2: read out EEPROM backup data & generate a service-mode EEPROM:

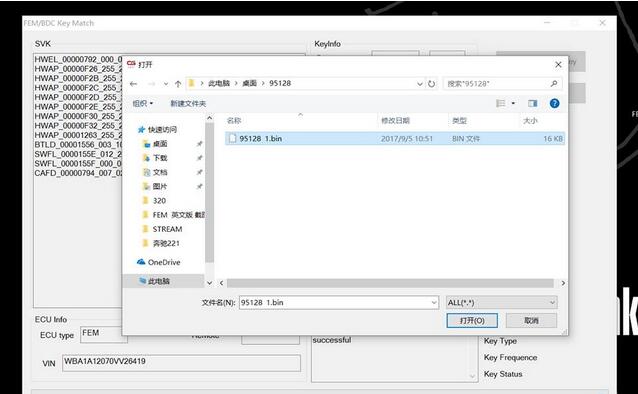

-> Disassemble FEM/BDC module, find out chip 95128 or 95256, read EEPROM data using a ECU programming tool: VVDI-Prog, Orange5 and the like;

-> Copy the EEPROM data into to the Lonsdor K518ISE customfile folder;

-> Run the program, read original EEPROM data and generate a service-mode EEPROM, upload data of the service-mode EEPROM, write it into chip 95128 or 95256 with help of a ECU programmer

-> Restore FEM/BDC system, supply battery to the car and connect via OBD

bmw-fem-bdc-key-programmer-04

3: programming

-> This step need to be done on the BMW FEM/BDC test platform;

-> Make sure that Step 1 & 2 is finished

-> Connect FEM/BDC system to power supply and connect to the OBD port

4: restore EEPROM data

-> disassemble FEM/BDC module, write original EEPROM data (Step 2) into chip 95128/95256

-> restore FEM/BDC system, connect to OBD

5: restore coding data

-> load the backup coding files (Step 1), restore coding information via OBD

6: pre-processing is complete.

Step 3: make a dealer key

1: Lonsdor K518ISE read out data, select the will-be key position

2: a “used”key to make a dealer key

All keys lost: enter 32bit ISN codes to make a dealer key

3: put the key near the car immo induction loop

bmw-fem-bdc-key-programmer-05

4: detect the original key, read out immo data

5: put a new key near the car immo induction loop

6: detect the key key, key learn (don’t move the key, keep stable)

7: key learn is complete

Step 4: disable the key

1: Lonsdor K518ISE read out data, select the key ID position to disable

2: put a “used” key near the car induction loop

3: K518ISE system tries to connect to CAS, disable the key with current ID position, disable key successfully

Step 5: enable the key

1: Lonsdor K518ISE read out data, select the key ID position to enable

2: put a “used” key near the car induction loop

3: K518ISE system tries to connect to CAS, enable the key with current ID position, enable key successfully

Step 6: delete the key

1: K518ISE read out data, select the key ID position to delete

2: read FEM/BDC key password

3: delete the key successfully; the key position is blank

THE MOST IMPOERTAN TIPS

1: You must read key info before everything you’ll do

2: to pre-process FEM/BDC, you should pay attention to:

– backup coding codes to continue

– disconnect to the power supply/battery, have a ECU programmer to read EEPROM data, up load data in K518 customfile folder, read new EEPROM data loaded just now, generate service-mode EEPROM data, read service-mode EEPROM data, write data into the chip, install CPU on the car

– ECU programming: need 6 min, with power supply connected

– disconnect to the power supply, disassemble CPU, write the original EEPROM data into the chip, install CPU on the car, connect to the power supply, make sure communicate is successful

– upload coding files (Step 1), restore original coding info to pre-process, then make a dealer key

3: 32bit ISN codes is required to program a new key when ALL KEYS ARE LOST

Note: If you want to program BMW FEM key when all keys lost, you are required to enter 32-digit ISN code to access.

bmw-fem-bdc-key-programmer-06

Job’s done with Lonsdor K518ISE!

bmw-fem-bdc-key-programmer-07

2 How to use CGDI Prog BMW to OBD program FEM key

Go to BMW OBD Key Match

bmw-fem-bdc-key-programmer-08

The current FEM/BDC needs to update the ECU program before performing key matching. Please ensure that the car battery has enough power, the programming process, please keep the equipment cable connection

bmw-fem-bdc-key-programmer-09

Please remove the FEM/BDC and then use the CGDI Prog programmer to read and save data from the P5XXX EEPROM chip on the FEM/BDC computer board, then click on Next

bmw-fem-bdc-key-programmer-010

Read the original car EEPROM data file

bmw-fem-bdc-key-programmer-011
bmw-fem-bdc-key-programmer-012 bmw-fem-bdc-key-programmer-013

Use the CGDI Prog BMW to write the calculated new data to the 95XXX EEPROM chip, then put the FEM/BDC back into the car, thn click on Next
bmw-fem-bdc-key-programmer-014

Car battery voltage: 11.93V

Prepare the programming ECU

Security authentication is in process

Safety certification through

The ECU is being programmed

bmw-fem-bdc-key-programmer-015

Please remove the FEM/BDC and then use the CGDI Prog programmer to read and save data from the P5XXX EEPROM chip on the FEM/BDC computer board, then click on Next

bmw-fem-bdc-key-programmer-016

Setting code

Coding is successful
bmw-fem-bdc-key-programmer-017 bmw-fem-bdc-key-programmer-018

FEM/BDC key matching need to enter engine ISN, please select the way of input ISN code

bmw-fem-bdc-key-programmer-019

OBD is connecting

OBD KWP-CAN 500kbps connection is successful

bmw-fem-bdc-key-programmer-020

Loading the code data file

bmw-fem-bdc-key-programmer-021 bmw-fem-bdc-key-programmer-023

Coding is successful

bmw-fem-bdc-key-programmer-024

Xhorse VVDI2 BMW FEM/BDC coding/programming

BMW FEM/BDC Coding/Programming with VVDI2 full kit 4.3.0 above

step 1:

read FEM/BDC coding via OBDII or on the bench
you’d better not close this window after starting this procedure

step 2:

open FEM/BDC shell, find out where the 95128/95256 chip is, read EEPROM dump via BDM programmer
load original EEPROM dump and save special EEPROM dump, write special EEPROM dump back to the 95128/95256 chip
restore FEM/BDC shell, provide -12v and connect it via OBD

step 3:

this operation requires connecting FEM/BDC on the bench, and make sure you finish step 1 ans step 2
provide +12v to FEM.BDC and connect it via OBD

step 4:

open FEM/BDC shell, write original EEPROM dump (read step 2) back to the 95128/95256 chip
restore FEM/BDC shell and connect it via OBD

step 5:

loading coding file (read step 1), write to FEM/BDC via OBDII, finish FEM/BDC programming

Attention please!!!

– You can directly backup/restore coding

– You have to pre-setup the FEM/BDC module before deleting/adding keys or resetting keys

– You’ll be told other tools need to be used first to program the FEM/BDC system, then setup FEM/BDC via VVDI2. It happens when you do FEM/BDC key learning, and you don’t have a working software version

– You’d better not close the VVDI2 interface when you pre-setup FEM/BDC

– You need do with 95128(FEM) or 95256(BDC) chip when pre-setup FEM/BDC

Note: there are two 8-pin chips; do not disassemble the wrong chip; better refer to the wiring diagram

– You must restore original EEPROM data, restore coding when pre-setup FEM/BDC. If you fail to restore coding or the remote cannot start or something wrong with the window (or other failures probably) after coding restore and FEM/BDC installation, please use other tools to do re-coding FEM/BDC

– Ask tech support @obdii365 for help, if the replay sounds continuously after supplying power to the FEM/BDC. Usually, it needs programming.



Yanhua BMW FEM Key Programmer add a new key

There are 5 steps for you to have Yanhua BMW FEM/BDC programmer add/program a new key.

Step 1: backup (read) coding data

Step 2: update/program ECU

Step 3: program/learn (add) key

Step 4: restore (write) coding data

Step 5: delete keys disabled

How to Program BMW FEM key with Yanhua BMW FEM/BDC programmer

In summary,

all tools above (Lonsdor K518ISE, CGDI BMW, VVDI2, Yanhua BMW FEM/BDC key programmer) can work good in FEM/BDC programming. So, Lonsdor K518ISE vs CGDI BMW vs Xhorse VVDI2 vs Yanhua tool, which best for OBD program BMW FEM/BDC? it depends on your budget and future use.

For BMW only: CGDI Prog BMW or Yanhua BMW FEM/BDC key programmer

For VAG+BMW: Xhorse VVDI2 is the best solution.

For universal key programming: Lonsdor K518ISE key programming machine never fails.

CGDI BMW price: us$629

Yanhua FEM/BDC programmer price: US$529

Lonsdor K518ISE price: US$1199

Xhorse VVDI2 BMW: US$1029

How to Program BMW F30 FEM Key with CGDI Prog Key Programmer

Here’s the little guide on programming key on a BMW F30 FEM system with CGDI Prog BMW MSV80 key programmer.

Device required:

CGDI Prog BMW key programmer

BMW FEM/BDC Test Platform for BMW  F20 F30 F35 X5 X6 I3

Preparation:

Disassemble the FEM/BDC module from vehicle

Procedure:

Connect BMW FEM/BDC test platform with CGDI Prog  and FEM/BDC module

cgdi-prog-bmw-f30-fem-1 cgdi-prog-bmw-f30-fem-2 cgdi-prog-bmw-f30-fem-3

Open CGDI Prog BMW software

cgdi-prog-bmw-f30-fem-4
Select FEM/BDC Key Match

cgdi-prog-bmw-f30-fem-5

The current FEM BDC needs to update the ECU program before performing key matching. Please ensure that the car battery has enough power supply. Please do not disconnect cable connection during programming procedure.

cgdi-prog-bmw-f30-fem-6

Please remove the FEM BDC and then use the programmer to read and save the data from the
95xxx EEPROM chip on the FEM/BDC computer board, then click “Next”

cgdi-prog-bmw-f30-fem-7

Please read the original car EEPROM data

cgdi-prog-bmw-f30-fem-8

cgdi-prog-bmw-f30-fem-9 cgdi-prog-bmw-f30-fem-10 cgdi-prog-bmw-f30-fem-11
Read eeprom data with programmer, i.e Orange 5 eeprom programmer

and save data

cgdi-prog-bmw-f30-fem-12

cgdi-prog-bmw-f30-fem-13

User the programmer to write the calculated new data to the 95xxx eeprom chip, then put the FEM BDC back to the car
click Next

cgdi-prog-bmw-f30-fem-14

Click OK to write M95128

User the programmer to write the calcutaed new data to the 95xxx eeprom chip, then put the FEM BDC back to the car
click Next

Power on BMW FEM BDC test platform

The yellow indicator will flash
cgdi-prog-bmw-f30-fem-15 cgdi-prog-bmw-f30-fem-16

Coding is being backed up

The ECU is being programmed

and verify flashing
cgdi-prog-bmw-f30-fem-17 cgdi-prog-bmw-f30-fem-18

Program BMW F30 FEM key success

cgdi-prog-bmw-f30-fem-19
